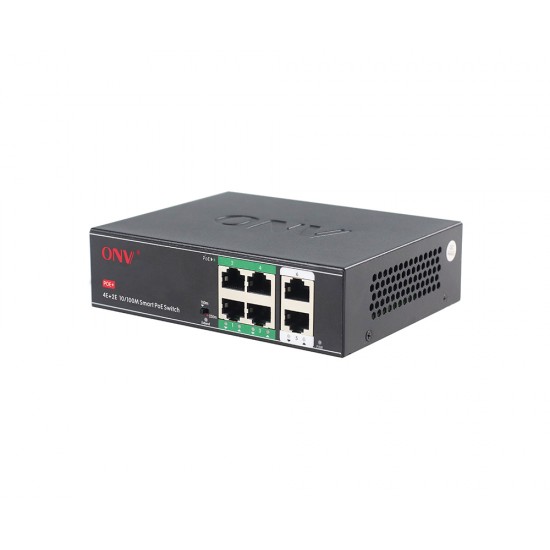

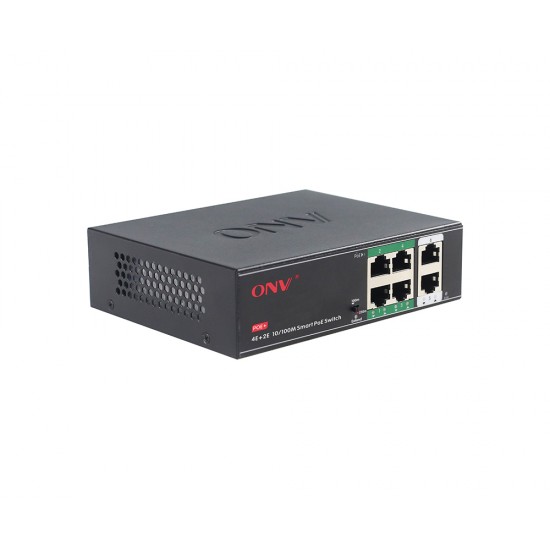

The ONV-H1064PSD 6-Port 10/100Mbps PoE Switch, available from Khondokar Enterprise, is a reliable and cost-effective networking solution designed to provide stable power and data transmission for IP-based devices. With 4 PoE+ ports and 2 dedicated 10/100Mbps uplink ports, this unmanaged PoE switch is an ideal choice for CCTV surveillance systems, IP cameras, wireless access points, VoIP phones, video access control systems, offices, hotels, campuses, factories, and small to medium-sized businesses.

Equipped with 4 × 10/100M RJ45 PoE+ ports and 2 × 10/100M RJ45 uplink ports, the ONV-H1064PSD allows compatible devices to receive both network data and electrical power through a single Ethernet cable. Ports 1–4 support PoE+ power delivery with up to 30W per port, while the switch automatically detects compatible PoE devices and supplies power according to the required standard. This helps simplify installation by reducing the need for separate power adapters and additional cabling.

Reliable Network Connectivity

The ONV-H1064PSD supports non-blocking wire-speed forwarding, helping provide smooth and efficient data transmission across connected devices. It supports full-duplex operation based on IEEE 802.3x and half-duplex operation based on Backpressure, making it suitable for different network environments where stable data communication is required.

Smart PoE Power Supply

The built-in PoE priority system helps manage power delivery when the available power budget is limited. Higher-priority PoE ports receive power first, helping maintain stable operation of important connected devices. The switch also automatically identifies compatible PoE equipment, helping protect non-PoE devices from inappropriate power delivery.

250m EXTEND Mode for Long-Distance Transmission

One of the key features of the ONV-H1064PSD is its EXTEND Mode, which can increase the maximum transmission distance up to 250 meters. When this mode is enabled, the speed of ports 1–4 is reduced to 10Mbps, allowing existing twisted-pair network cables to overcome the standard 100-meter Ethernet transmission limitation.

This feature is particularly useful for long-distance IP camera installations, remote network devices, factories, warehouses, campuses, and other locations where connected devices may be positioned far away from the main network equipment. It can also help address transmission problems caused by aging network cables.

VLAN Isolation for Improved Network Stability

The ONV-H1064PSD also provides VLAN isolation functionality when the 250m EXTEND mode is enabled. In this mode, ports 1–4 are isolated from one another while maintaining communication with uplink ports 5–6.

This helps reduce broadcast traffic, prevent potential DHCP conflicts, optimize network resources, and minimize the impact of broadcast storms, providing a more stable environment for IP surveillance and other network applications.

Plug & Play Installation

Designed as an unmanaged PoE switch, the ONV-H1064PSD requires no complicated software configuration or network management. Simply connect compatible PoE devices to ports 1–4 and connect the network backbone, router, NVR, or other network equipment to the uplink ports.

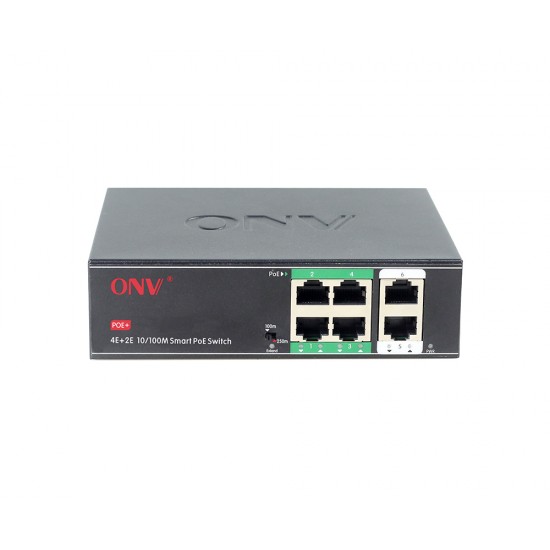

Its Plug & Play design makes installation quick and convenient, while the front-panel PWR and PoE LED indicators provide an easy way to monitor the operating status of the switch and connected PoE devices.

Durable Fanless Design

The ONV-H1064PSD features a galvanized steel housing designed for durability and effective heat dissipation. Its fanless construction allows quiet operation while helping maintain stable performance with low power consumption.

The combination of a durable metal enclosure, efficient heat dissipation, and simple design makes the switch suitable for continuous use in offices, CCTV control rooms, hotels, schools, factories, retail environments, and small business networks.

Ideal Networking Solution from Khondokar Enterprise

The ONV-H1064PSD 6-Port PoE Switch is more than just a basic Ethernet switch. With 4 PoE+ ports, 2 uplink ports, up to 30W PoE output per port, 250m EXTEND transmission, VLAN isolation, automatic PoE detection, wire-speed forwarding, and Plug & Play installation, it provides a practical networking solution for modern IP surveillance and business environments.

For customers looking for a dependable PoE switch for IP cameras, CCTV systems, wireless access points, VoIP phones, or access control applications, Khondokar Enterprise offers the ONV-H1064PSD as an efficient and easy-to-deploy networking solution.
